Designline Drop In Dry Heat Bain Marie HBM4

Description

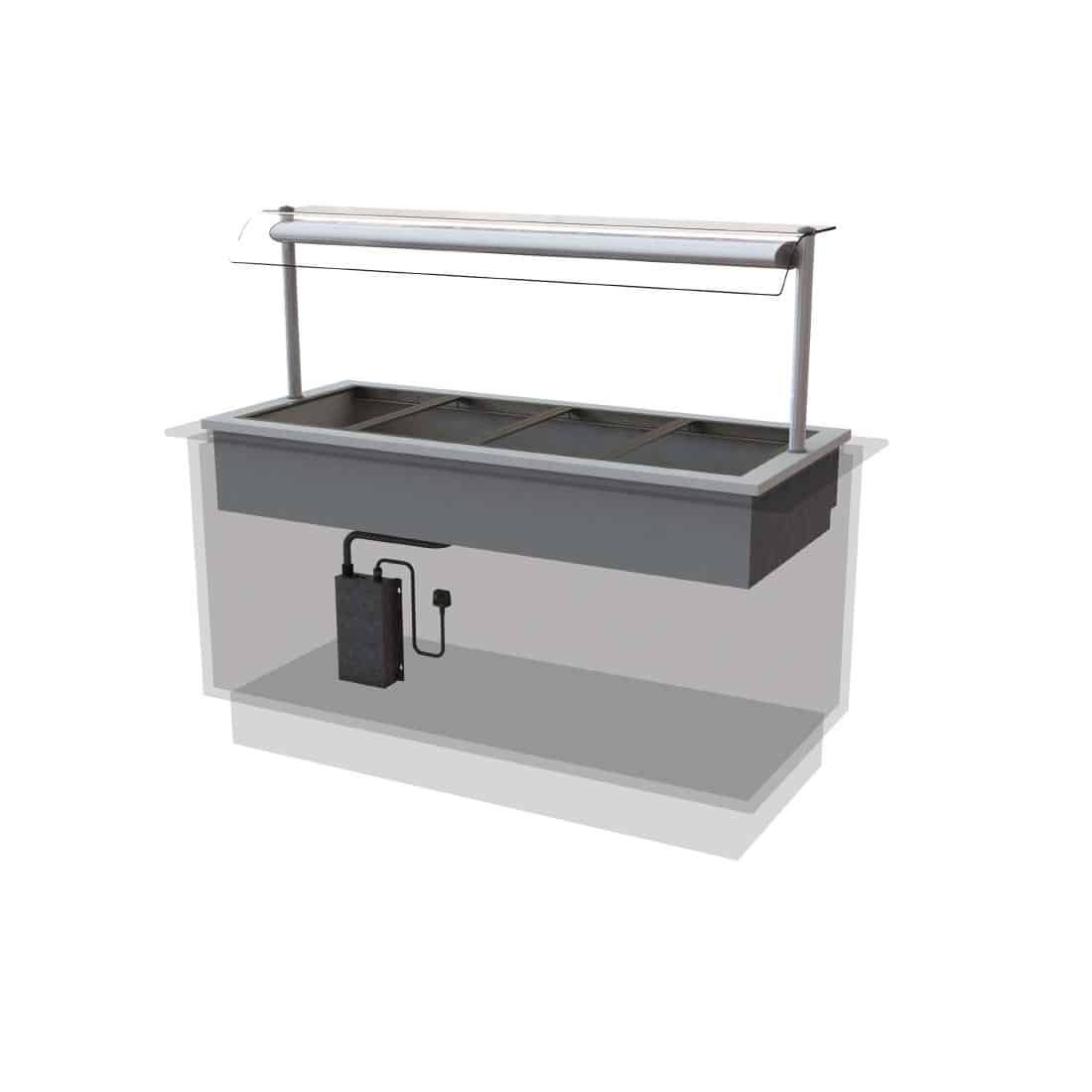

Display, illuminate, heat and protect pre-cooked food with CED’s elliptically shaped Designline self help dry heat bain marie drop in display. This 4/1 Gn size hot display features a 4/1Gn heated tank area and individual 1/1Gn gastronorm container support collars, which accept various sized Gn containers up to 150mm deep . The display fits into a pre-formed cut out made in a countertop . The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted & ‘locked’ from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation & is factory set to hold food core at 85 deg. C. Modular removable heater element covers in the heated well give even heat spread & make for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box & plug top on a 2M lead. GN’s Sold Separatley.

• Curved display in bright polished steel and aluminium profile
• Gantry fitted with curved toughened glass sneeze screen for food protection
• 24 hour operation as standard
• Self help application
• Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
• Supplied with lifting kit for installation and concealed control box & plug top on a 2M lead
• Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1Gn section, housed within an elliptical profile gantry
• Base heat is provided to each 1/1 GN section by individual heater elements
• Supplied with individual 1/1 GN gastronorm container support collars, which accept various sized GN containers up to 150mm deep
